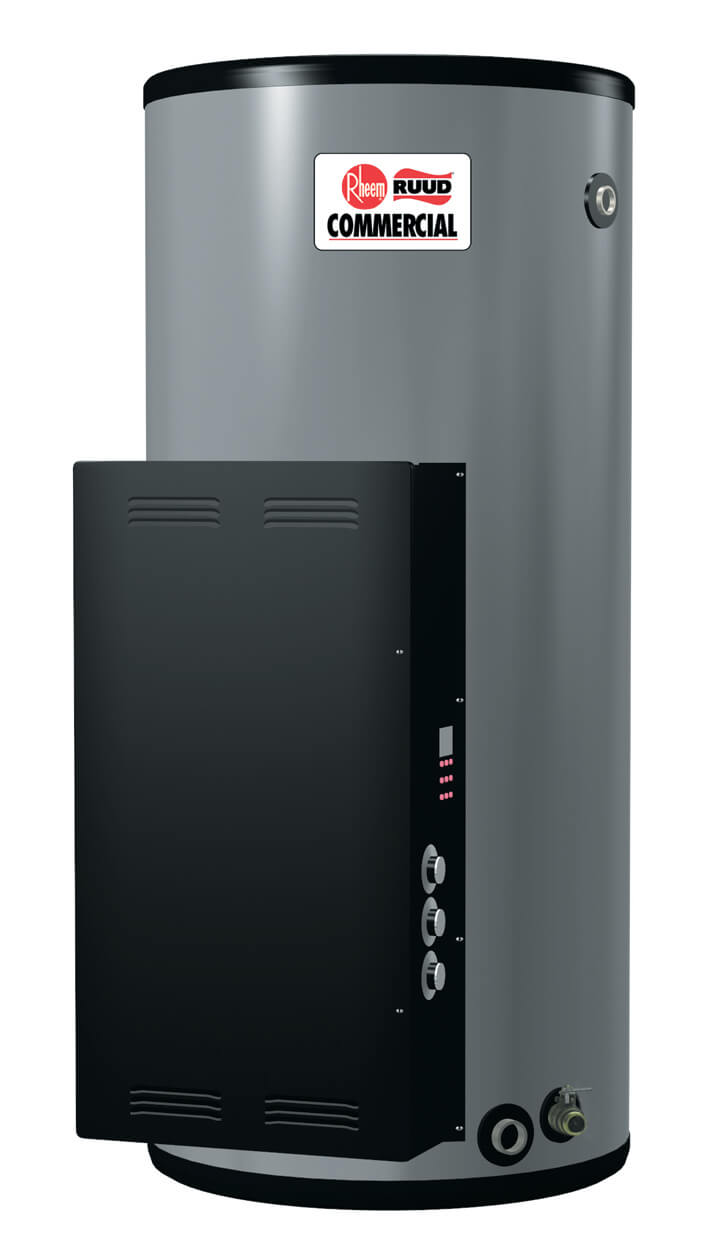

Commercial Electric Water Heaters
Features
- 98% Thermal Efficiency
- System Sentinal™ provides a diagnostic panel with LEDs that correspond to the number, location and status of each element
- ASME construction is available on E50, E85 and E120 models and comes standard on E175 model
- Full-port, Full-flow factory installed brass drain valve that allows for faster draining and servicing
- Surface mounted and immersion thermostat models available
- Ideal for general commercial use and point-of-use applications like eyewash stations, or used as a booster
- Temperature and pressure relief valve at top of 175 gallon model and side on all other models
- Long life tank design of proprietary steel formulation with high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design
- Two anode rods are installed to ensure long life and corrosion resistance
- Control box is located at the front of the unit for easy wiring during installation and Multiple knockout holes to accommodate a variety of conduit sizes
Specifications
- Recovery rate up to 438 gallons GPH at a 100° F
- Hot and cold water inlets are 2-1/2" NPT dielectric nipples on the 175 gallon model and 1-1/2"" on all other models
- Available in 1, 3, 6, 9 or 12 element configurations for your specific kW application & up to 108 KW input
- Elements are Lifeguard™ stainless steel, screw-in type that resist burn out and corrosion
- 50, 85, 120 and 175 gallon capacities, 98% Efficiency
