Residential Electric Water Heaters

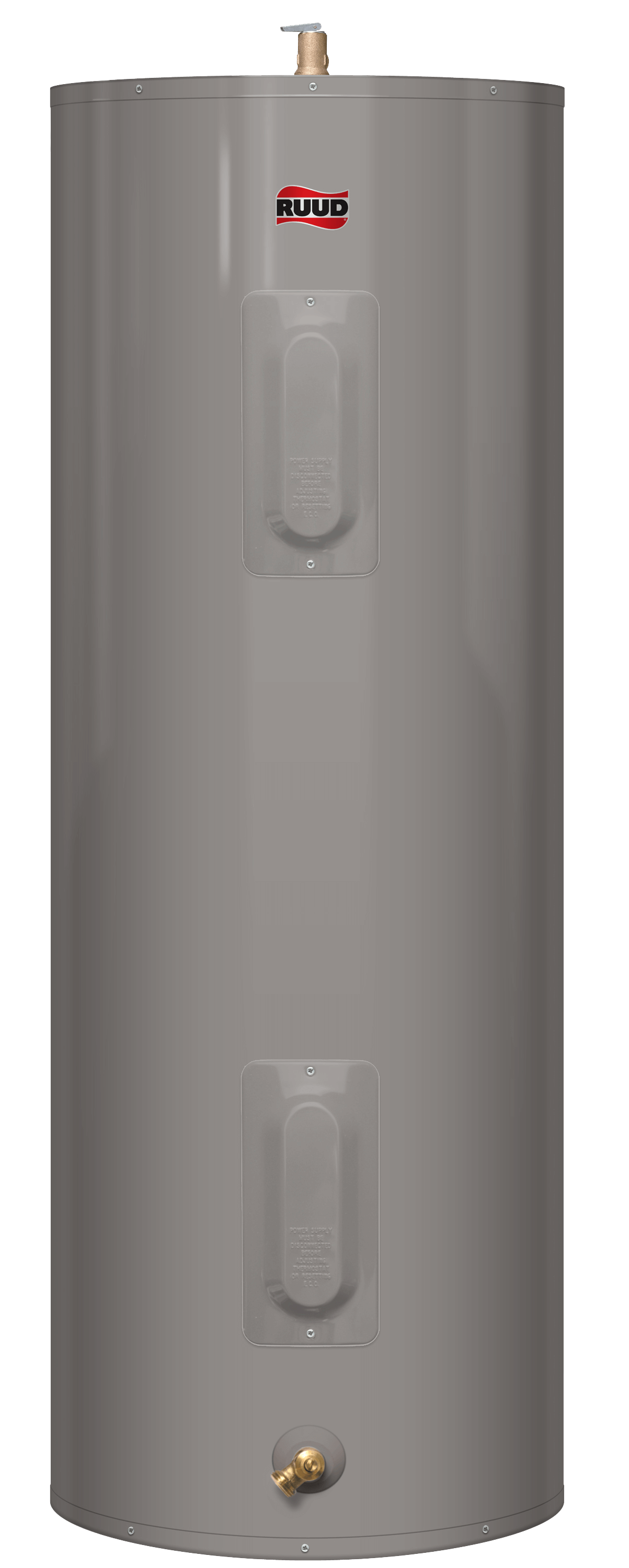

Pacemaker Electric

Features

  • Energy Factor up to 0.95
  • EverKleen™ self-cleaning device fights harmful sediment build-up with a high-velocity spiraling water stream helps operating efficiency by saving energy, money and improving tank life
  • High efficiency resistored heating element(s) for added protection to prolong anode rod and tank life
  • Exclusive Ruudglas tank lining resists corrosion
  • R-Foam insulation for superior heat retention
  • High quality Brass drain valve
  • Over-temperature protector cuts off power in excess temperature situations
  • Automatic thermostat keeps water at desired temperature
  • Available with Stainless Steel or Incoloy heating elements
  • Electric junction box located above heating elements for easy installation

Specifications

  • Available in Single and Dual Elements, Sim and Non-Sim operation
  • Maximum tank working pressure of 150 PSI (10 BARS)
  • UL listed and IEC tested
  • 20, 30, 40, 50, 65, 80 and 120 gallon capacities, Tall, Medium and Short configurations
  • Available in 208V, 220V, 230V, 240V, 380V, 400V, 415V and 480V and in 2, 2.5, 3, 4.5, 5, 5.5 and 6 Kw
