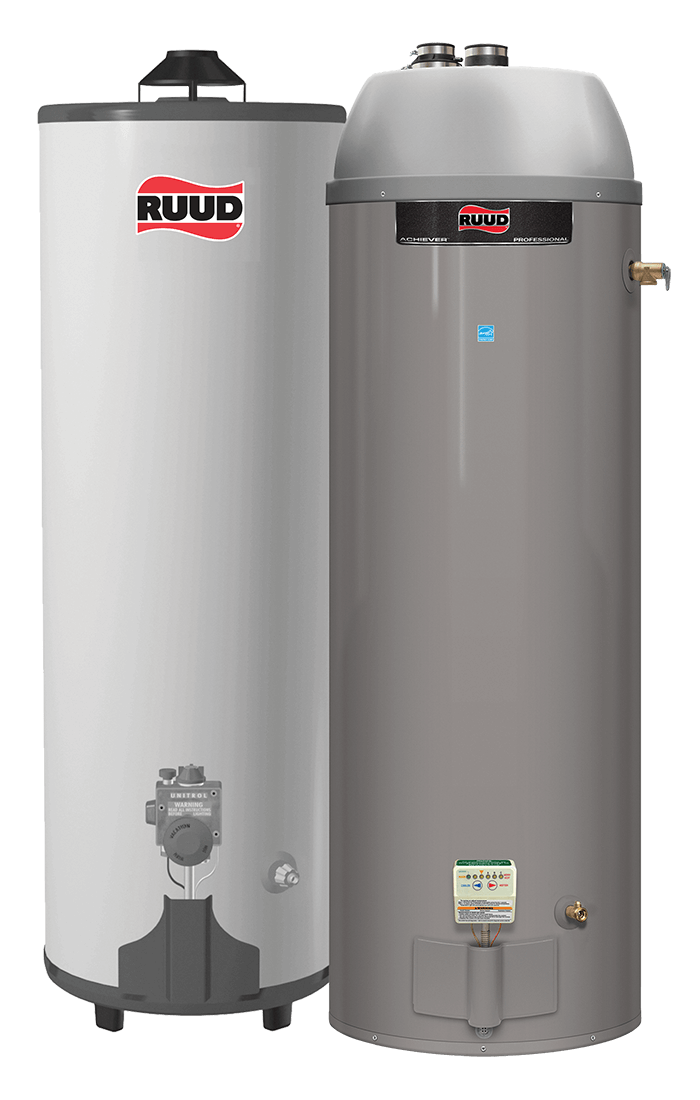

Residential Gas Water Heaters
Features
- Eco-friendly burner, low NOx design

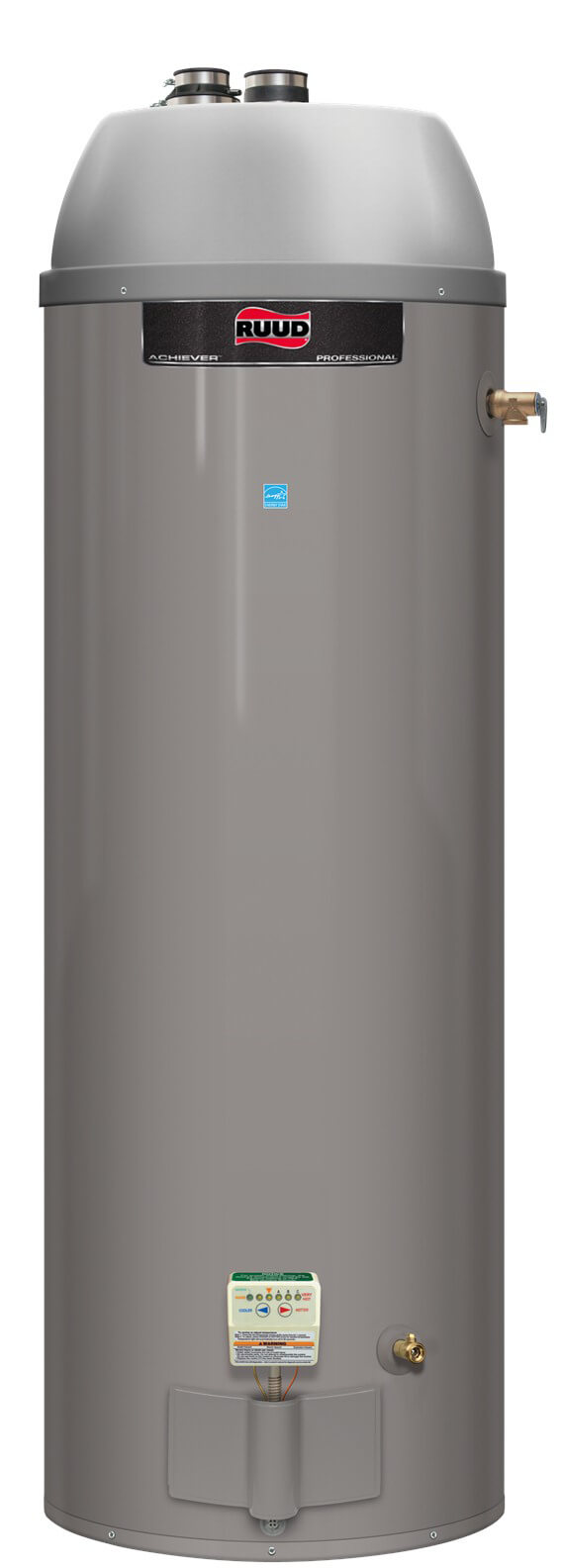

- Two pipe system: one pipe pulls in outside air for combustion and the other exhausts combustion gases
- New whisper quiet blower
- Protective control system that disables the heater in the presence of flammable vapor accumulation
- Long venting lengths up to 100 feet
- PVC, ABS, or CPVC vent pipe options
- Vertical or horizontal termination
- Concentric vent kit available
- Ruud exclusive R-Tech (resistored) anode rod provides long-lasting tank protection
- Enhanced-flow brass drain valve
- Low lead compliant
- Durable silicon nitride igniter (HSI)
- EverKleen™ patented system fights sediment build-up
Specifications
- 0.63 - .69 UEF
- ENERGY STAR® rated
- FHR: Up to 82 gallons for natural and LP gas
- Recovery: 38.4 to 40.4 at a 90 degree rise, based on model
- Induced draft that is FVIR compliant
- 40-50 gallon capacity
- Integrated self-diagnostic system control, thermostat and gas valve
- Models are certified for applications up to 10,200 feet above sea level
